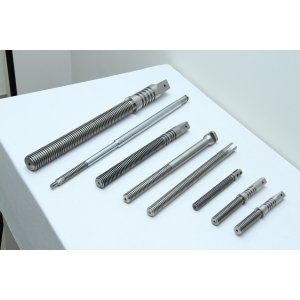

STEMS
Gate Valve Stems
Globe Valve Stems
Knife Gate Valve Stems
Angle Valve Stems
Indra engineering manufactures Acme and Trapezoidal type threads for stems / lead screws. By below mentions process based on customer requirements.
– Thread Rolling
– Thread Milling
– Thread Whirling
– Single point CNC Threading up to 1000mm
– Single Point Thread cutting in conventional machines
– Gate, Globe, Knife gate stems, which mainly have an ACME thread, are used in various applications, and we are in a particular area of expertise.
– Gate, Globe, Knife gate stems are manufactured from materials such as Stainless steel, nickel-based alloys, duplex, super duplex, Inconel alloys, Monel alloys, titanium etc.
– Our size range from as small as 3/8”-12 Acme to 4”-2ACME Single and Multi start threads, Stem Maximum Diameter by 200 mm up to 3 metres in length.
– All of our valve stems up to 1000 mm are finish turned using a CNC lathe, to a tolerance of + / – 0.02mm with a surface finish of 0.4 to 0.8.
– Above 1000mm are machined is Conventionla machinery up to 3000 mm in Length.

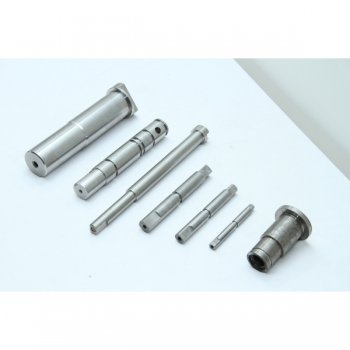

BUTTERFLY VALVE STEMS
BALL VALVE STEMS
CONTROL VALVE STEMS
BUTTERFLY VALVE, BALL VALVE & CONTROL VALVE STEMS are manufactured from materials such as Stainless steel, nickel-based alloys, duplex, super duplex, Inconel alloys, Monel alloys, titanium etc.
Our size range from as small as 3/4”-12” ie 10 to 200 mm diameter by up to 1000 mm in length. All of our valve stems up to 1000 mm are finish turned using a CNC lathe, to a tolerance of + / – 0.02mm with a surface finish of 0.4 to 0.8.
STEM NUT/SLEEVE
GATE VALVE
GLOBE VALVE
ANGLE VALVE
GATE VALVE, GLOBE VALVE & KNIFE GATE VALVE STEM NUT/SLEEVE are manufactured from materials such as GR 65-45-12, NI RESIST – D2 C, Our size range from as small as 3/8”-12 Acme to 4”-2 ACME Single and multi start thread.
FASTENERS
FULL THREAD STUDS
HEX NUTS
HEAVY HEX NUTS
DOUBLE END STUDS
NPT PLUGS
FULL THREAD STUDS
All thread Bars is available from stock in High tensile, stainless steel and exotic materials including Duplex, Super Duplex & Nickel alloys in UNC and Metric thread forms.
In addition non stock Threaded Bar can be produced with in-house thread rolling capacity up to 4” (100mm) Dia including, UNF & Metric Fine type thread forms.
Threaded Bars can be supplied and manufactured in any length from 1 to 3 metres.

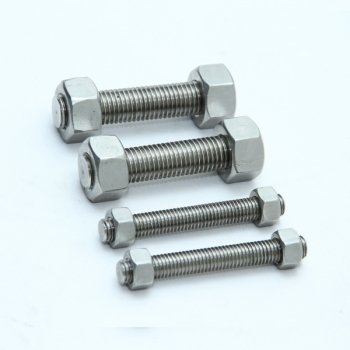

Stud Bolts & Assemblies
A comprehensive range of finished Studbolts and Studbolt Assemblies with two Hexagon Nuts
Finished Stud bolt & Nut assemblies available in carbon steel, stainless steel, duplex / super duplex and exotic alloys
Hex Nuts and Heavy Hex Nuts
Standard & Heavy Hexagon Plain and Washer Faced Imperial and Metric nuts are available in Carbon steel, Stainless, Duplex and Super Duplex grades of materials.
Special Nuts for bolt tensioning applications can be supplied including Round and Hex Nuts, Extra, Flanged Nuts and Locking features with Serrated Face, Slotted, Cross Drilled.
Special Products
Advanced and flexible in-house manufacturing capacity combining traditional engineering skills with computer controlled machining processes, Engineer Studs, Full Body or Reduced Shank (Waisted), Tie Rods, Foundation Bolts, U Bolts, NPT Plugs, Connectors threaded and turned components.
Surface Coating
All products are available with the full range of surface coating and treatments including:
Zinc, Clear and Yellow passivation
Zinc Nickel
Hot Dip Galvanizing
Nickel
MACHINING SERVICES
BONNET
END COVER
FLANGES
